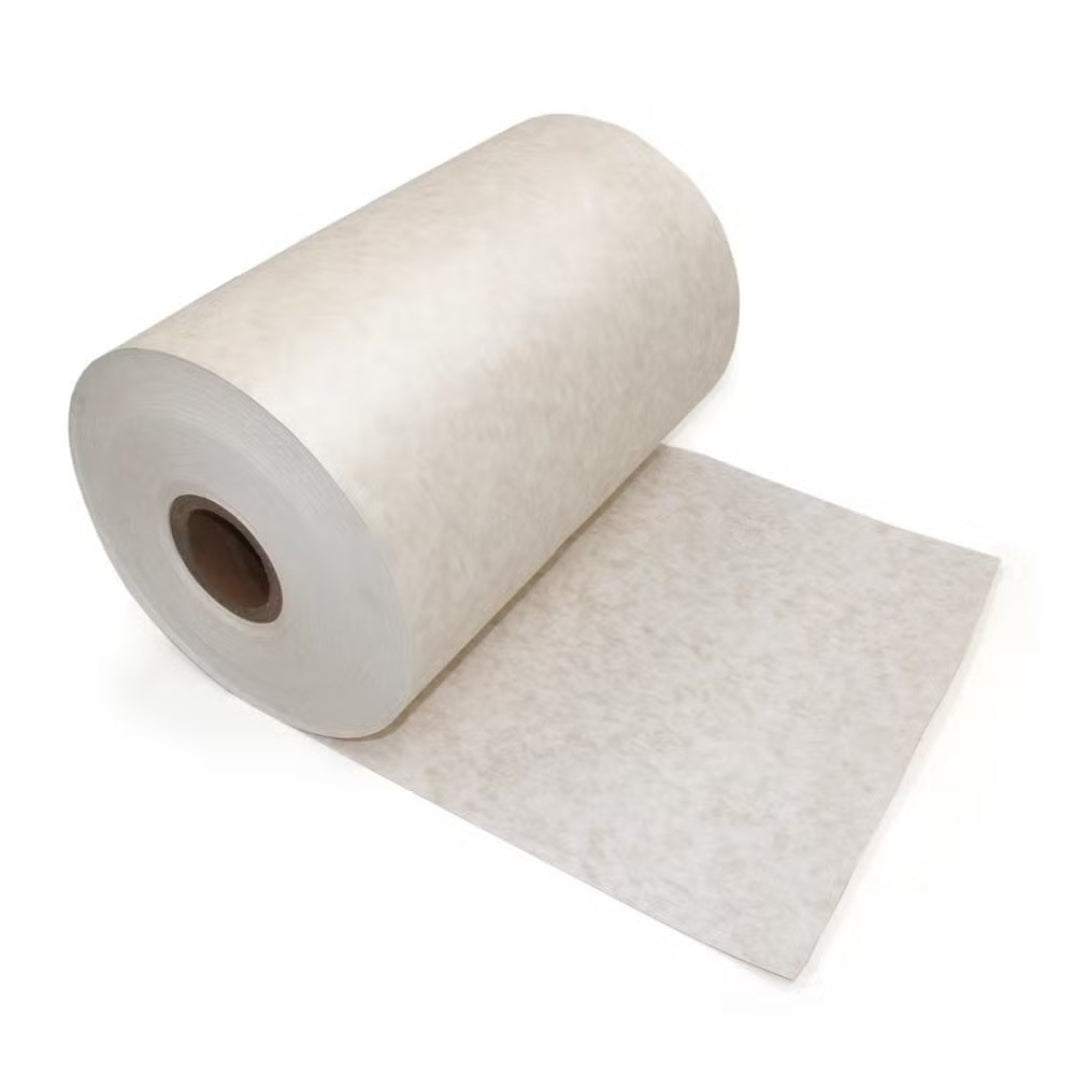

Aramid Paper Type X-630-Class H (180 °C)

Aramid Paper Type X-630 - 7 mil - Class H (180 °C) for professional electrical insulation.

• Material: X-630 is calendered aramid insulating paper, has high dielectric strength, mechanical strength, mechanical strength, flexibility and resilience. Its thickness is from 0.05mm to 0.76mm (2mil - Class H (180 °C) to 30mil - Class H (180 °C)). It is included in Class H, Class N and Class R UL system. X-Fiper®X-630 is a Class H (180 °C), Class N (200 °C) and Class R (220 °C) High Voltage insulating material.
• Applications: Electrical motors, Power distribution transformers, Domestic appliances, Generators, Armatures, Switchgear & controllers, Industrial Electronics, Instrumentation, Automation devices, Electric vehicle motors, Wire & conductors insulation, etc,.
• Color: Off-white
• Size: 7 mil
• Breakdown Voltage: 3.4 kv / mm
• Temperature Range: 180 degrees celsius
• Insulation Class: H class
• No. of Units/Pack: 5 kgs pack
• Unit of Measurement: Pack
